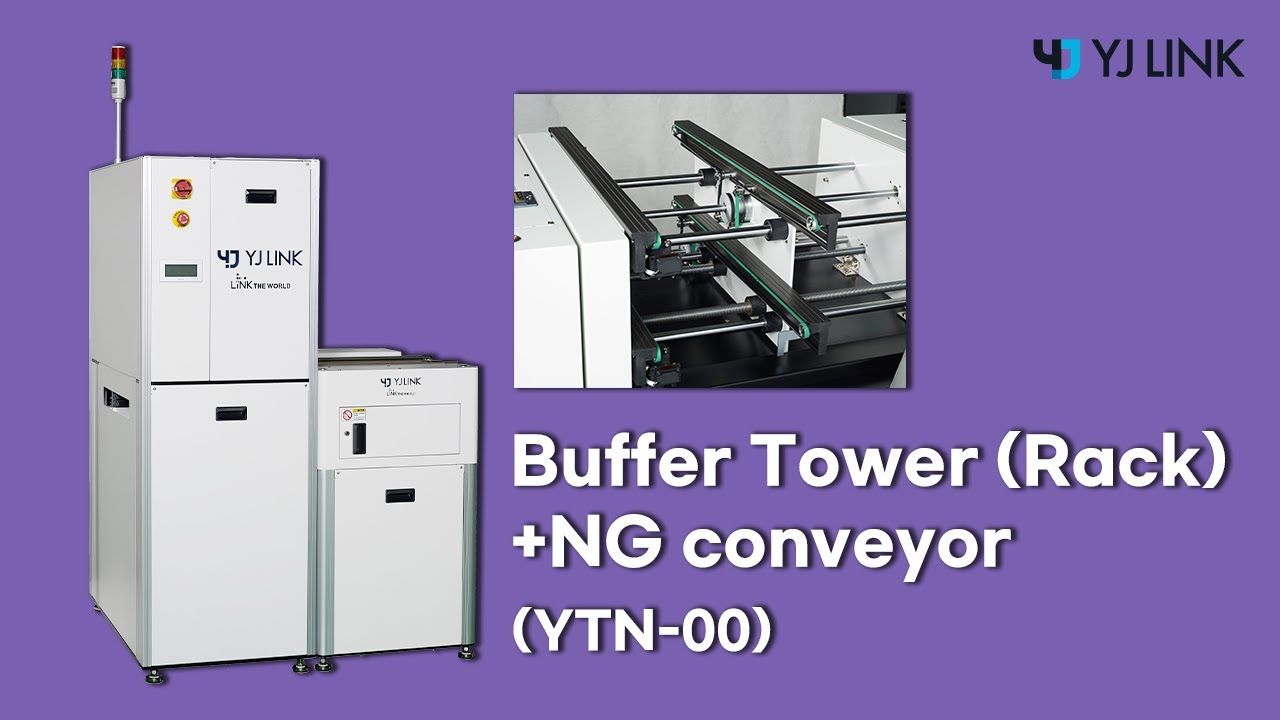

Tower + NG Conveyor CE

Tower-NG Conveyor buffer is located after SPI/AOI. The tower loads the NG PCB, and the conveyor enables visual inspection of the NG PCB. The GOOD PCB is being passed through to the next machine without any interruptions.
Play Video

This unit is located after SPI/AOI Machine to inspect NG boards in the line. The operator can CALL NG boards in the rack onto the 2nd layer of the conveyor part to inspect them visually while the GOOD boards are being passed through to the next machine without any interruptions.

  • Touch screen (Operating panel)
  • Tower lamp
  • Manual width adjustment
  • SMEMA interface
  • Controlled by PLC
  • Slot of rack - 20ea (±15mm)
  • Pitch selection (1 pitch)

  • Analog speed controller (1~200mm/sec)
  • Auto width adjustment
  • Width synchronization
  • NG communication
  • Line control
  • ESD powder coating (RAL 7035)
